TANDEM

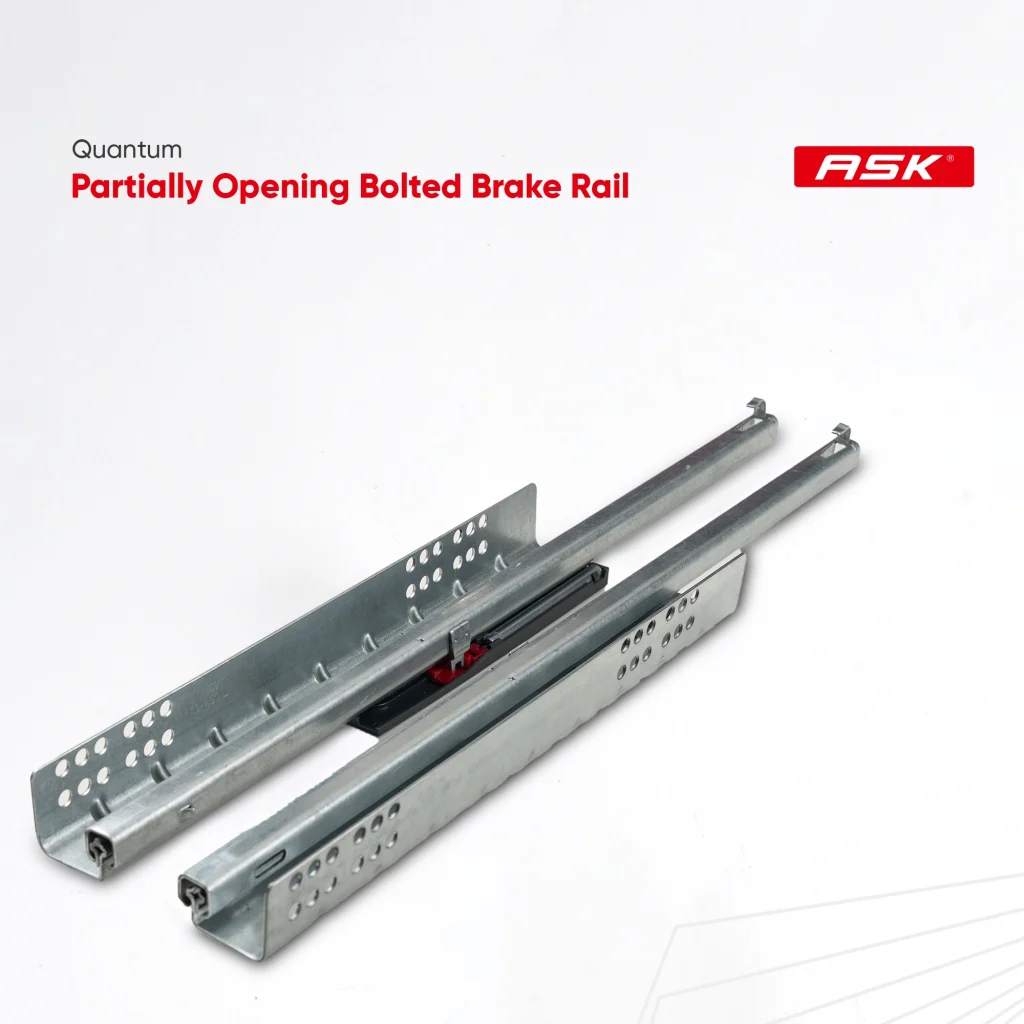

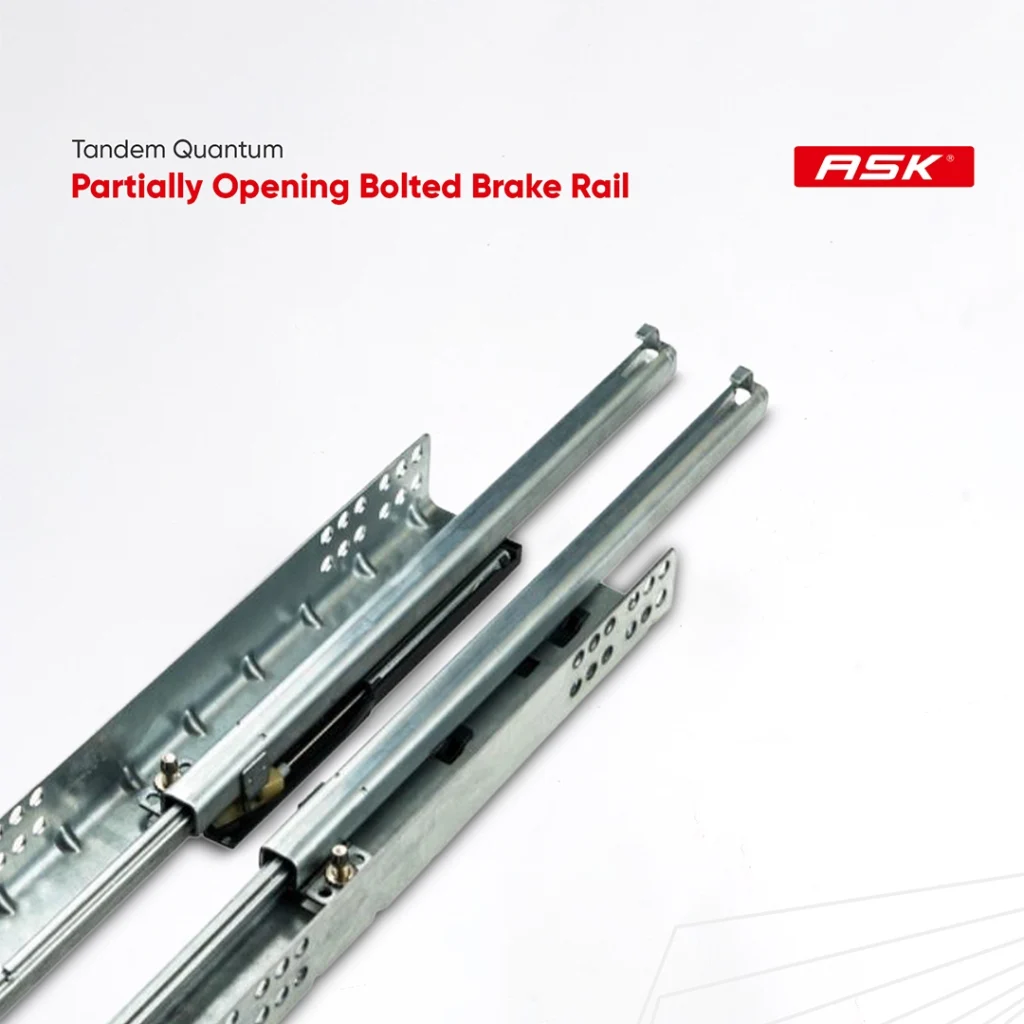

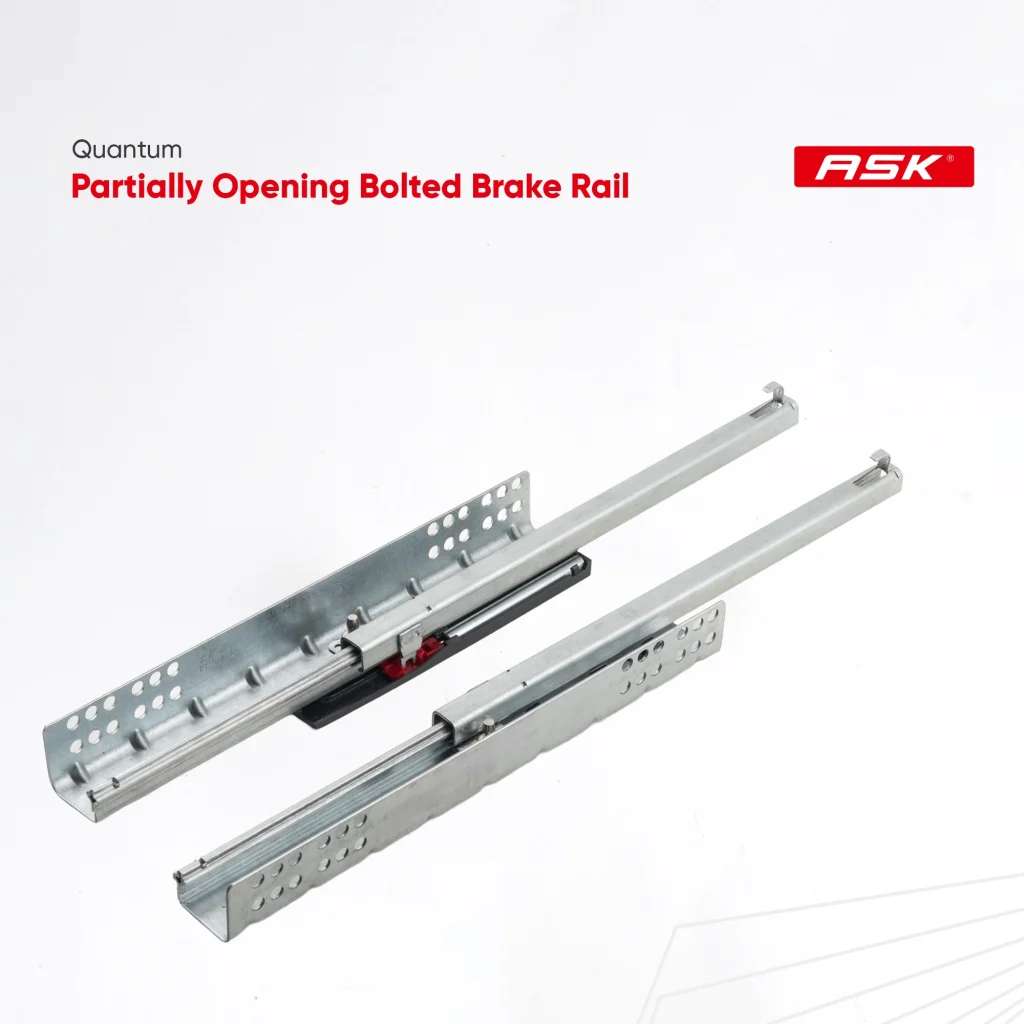

Partially Opening Bolted Brake Rail
TANDEM
Quantum

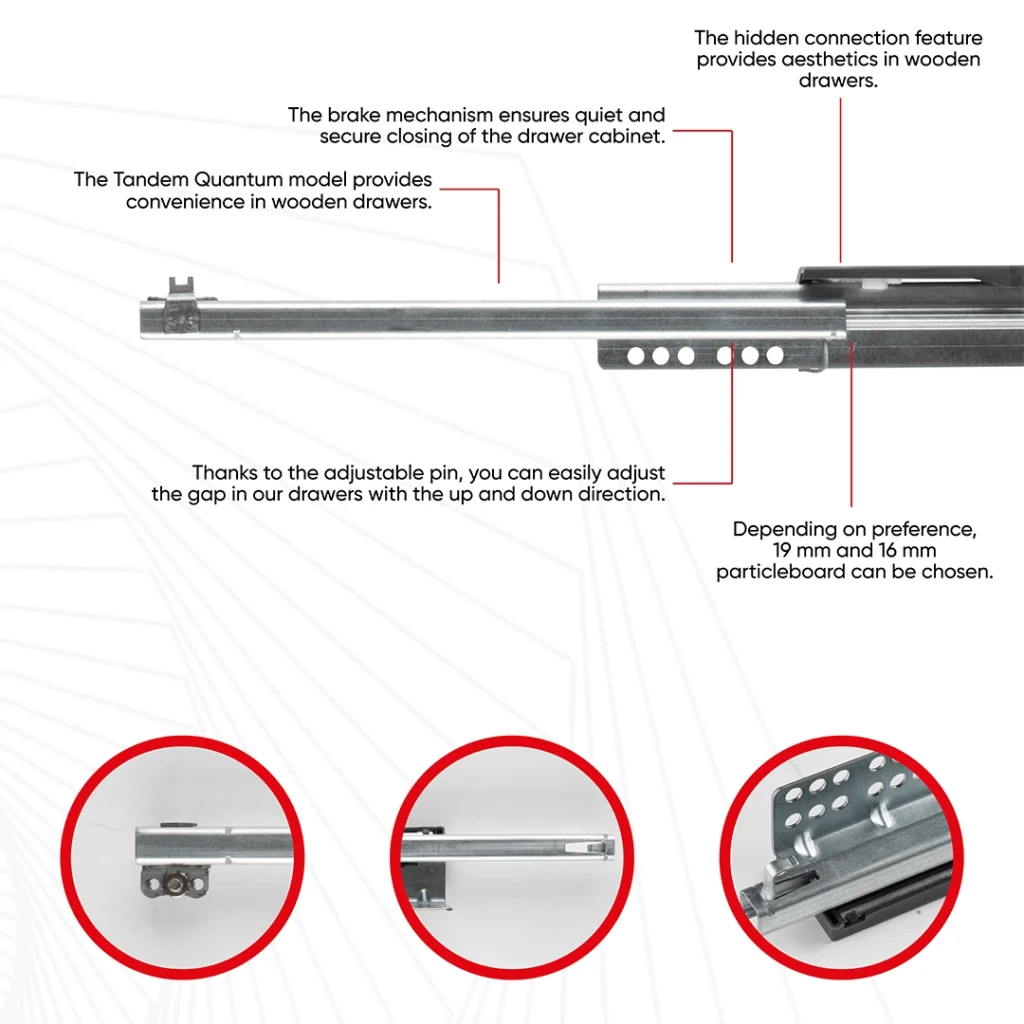

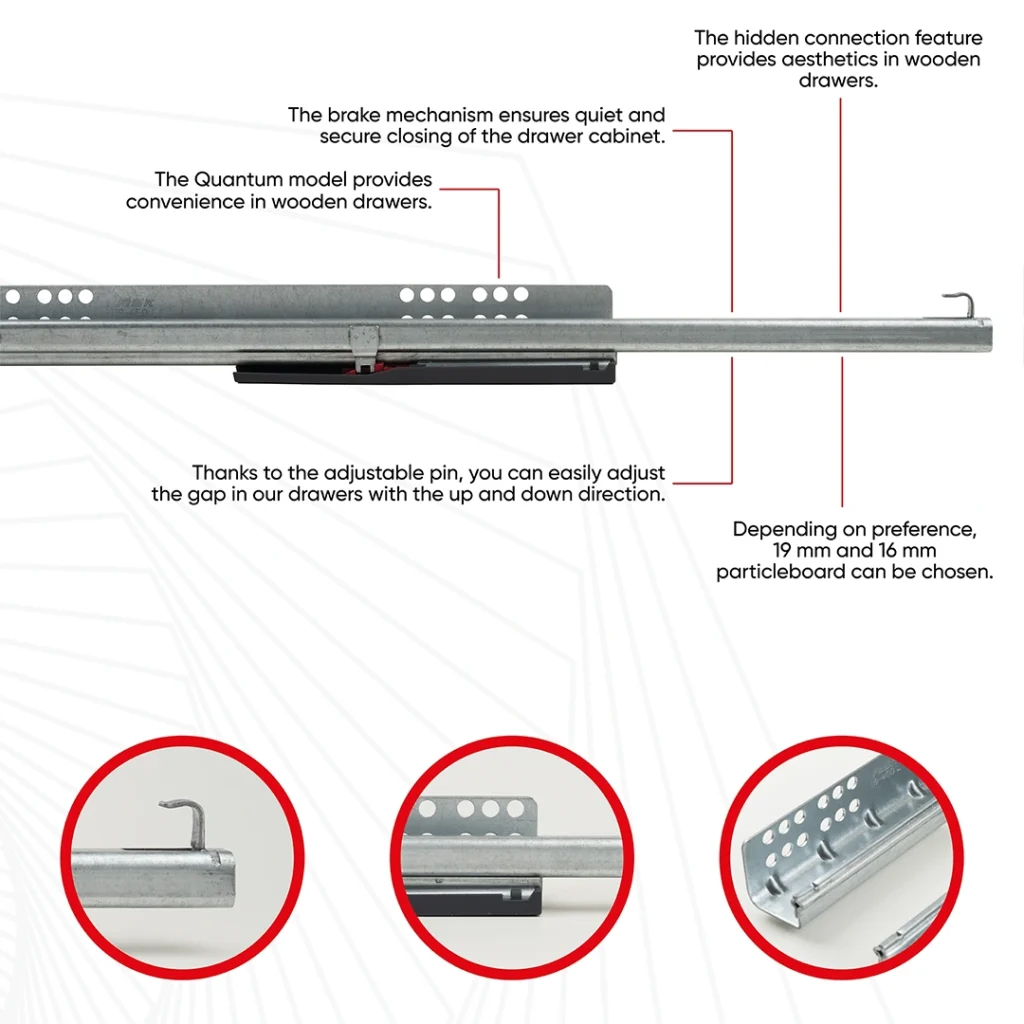

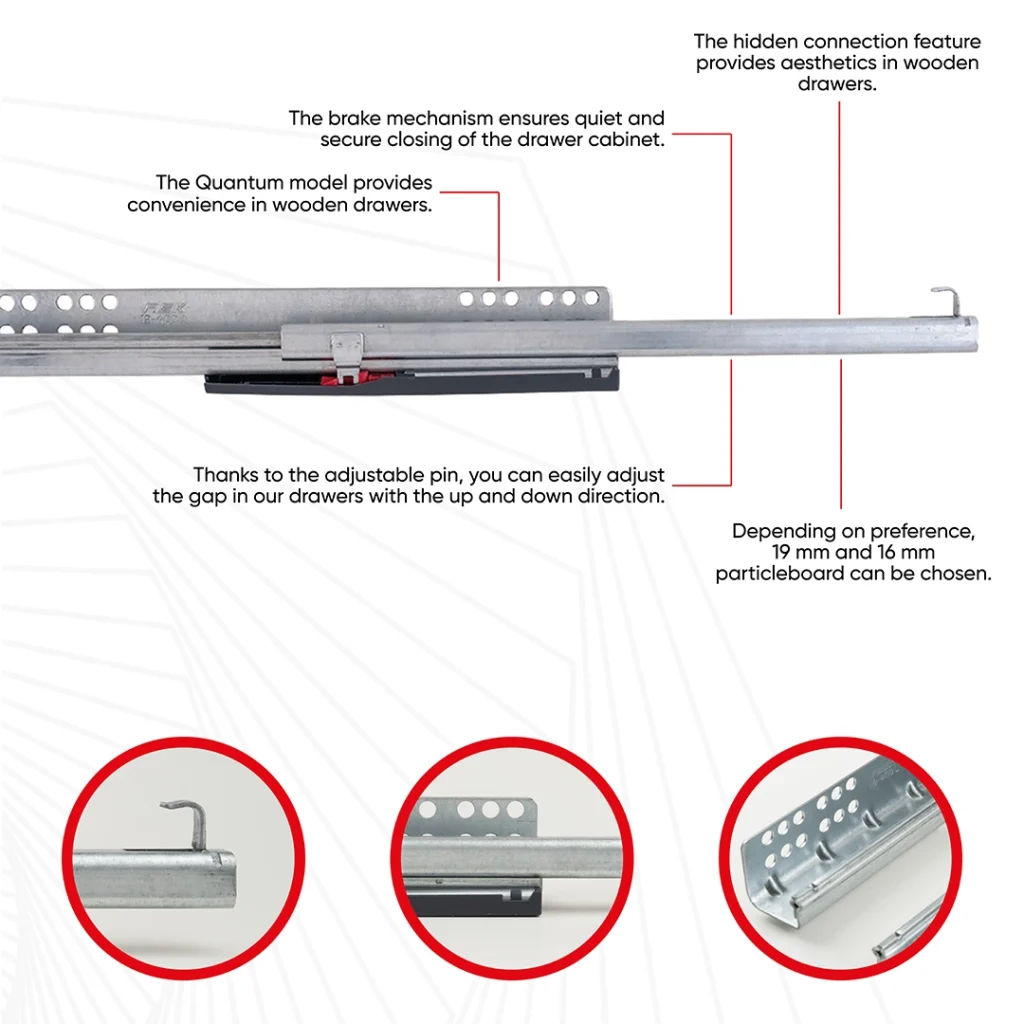

- The Tandem Quantum model provides convenience in wooden drawers.
- The brake mechanism ensures quiet and secure closing of the drawer cabinet.
- The hidden connection feature provides aesthetics in wooden drawers.
- Thanks to the adjustable pin, you can easily adjust the gap in our drawers with the up and down direction.
- Depending on preference 19 mm and 16 mm particleboard can be chosen.
- Product Specifications
- Profile
- Fasteners

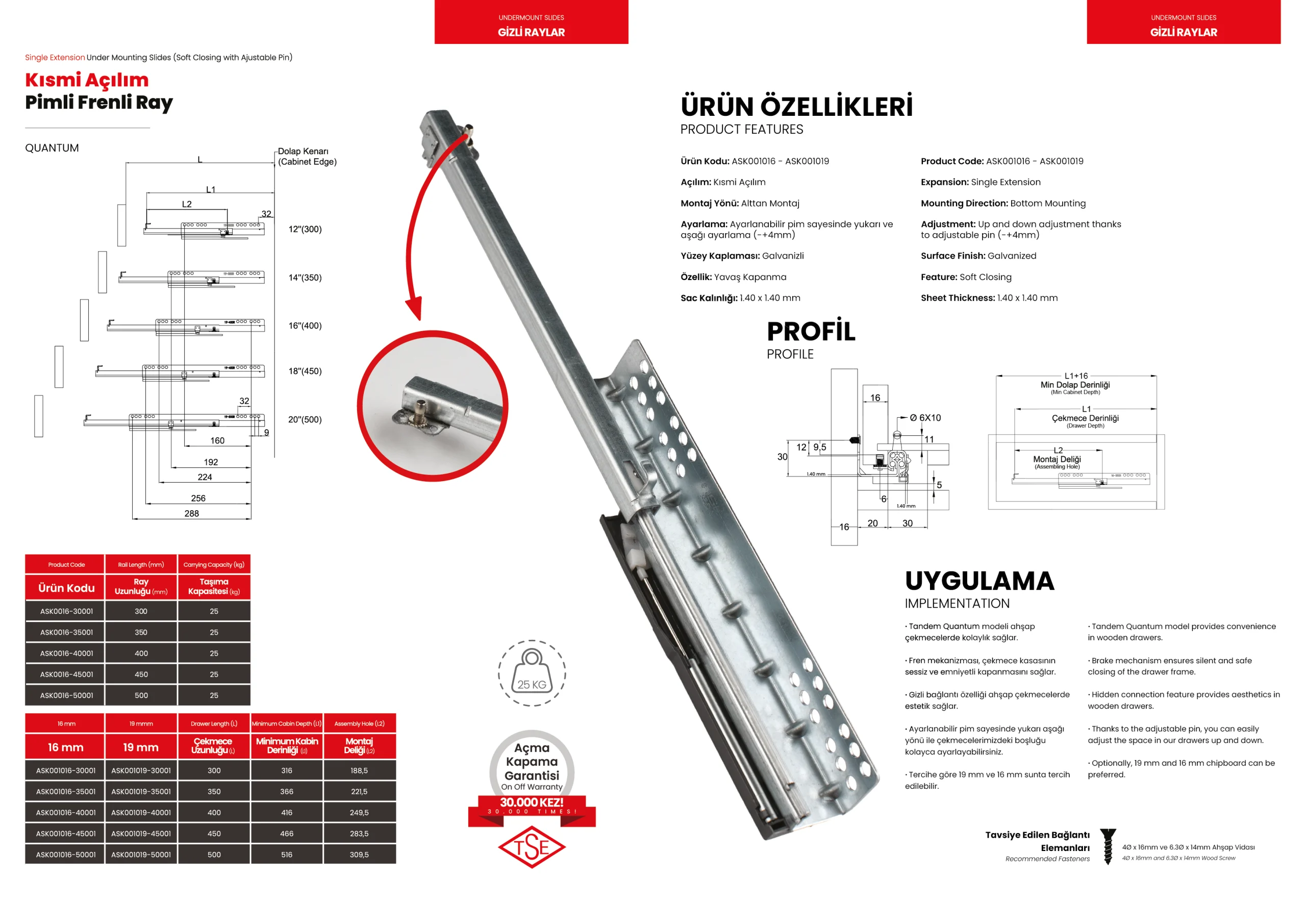

Product Specifications
Product Code: ASK0011016 - ASK0011016
Expansion: Single Extension
Mounting Direction: Bottom Mounting
Adjustment: Up and down adjustment thanks to adjustable pin (-+4mm)
Surface Finish :Galvanized
Features: Soft Closiing
Sheet Thickness: 1.40 x 1.40 mm
Recommended Fasteners
4 Ø X 16 mm ve 6.3 Ø X 14 mm Wood Screw
| 16 mm | 19 mm |
Drawer Length L |
Minimum Cabin Depth L1 |
Assembly Hole L2 |
Carrying Capacity kg |
|---|---|---|---|---|---|
| ASK0016-30001 | ASK0019-30001 | 300 | 316 | 188,5 | 25 |
| ASK0016-35001 | ASK0019-35001 | 350 | 366 | 221,5 | 25 |
| ASK0016-40001 | ASK0019-40001 | 400 | 416 | 249,5 | 25 |
| ASK0016-45001 | ASK0019-45001 | 450 | 466 | 283,5 | 25 |
| ASK0016-50001 | ASK0019-50001 | 500 | 516 | 309,5 | 25 |
