TANDEM

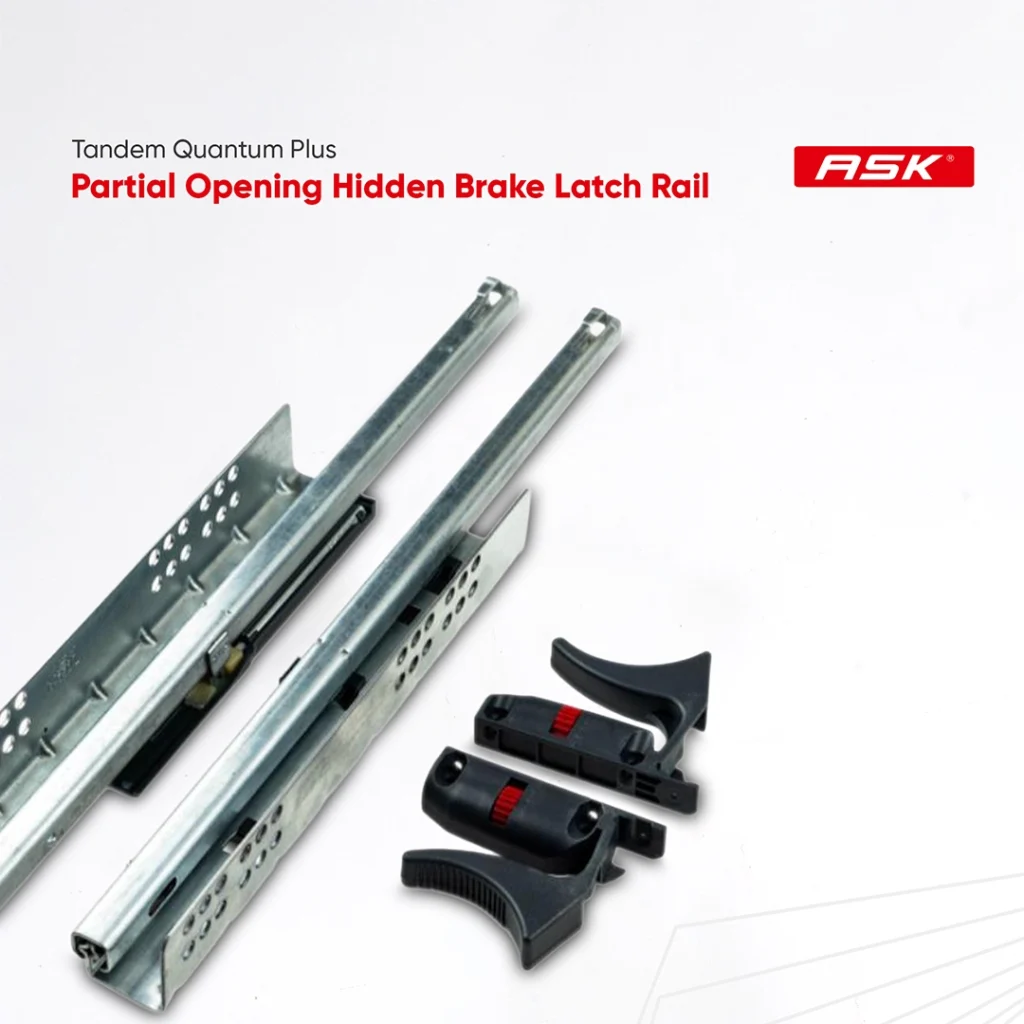

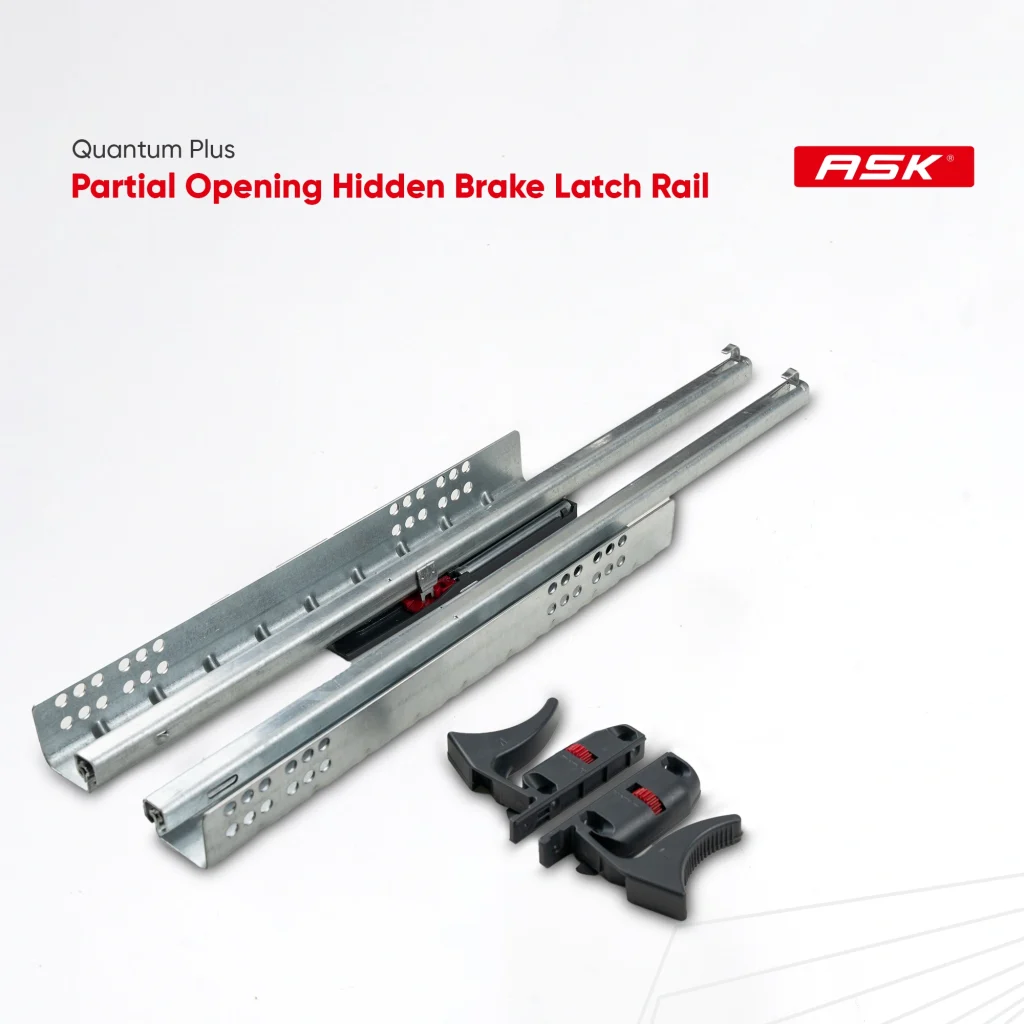

Partial Opening Hidden Brake Latch Rail
TANDEM
Quantum Plus

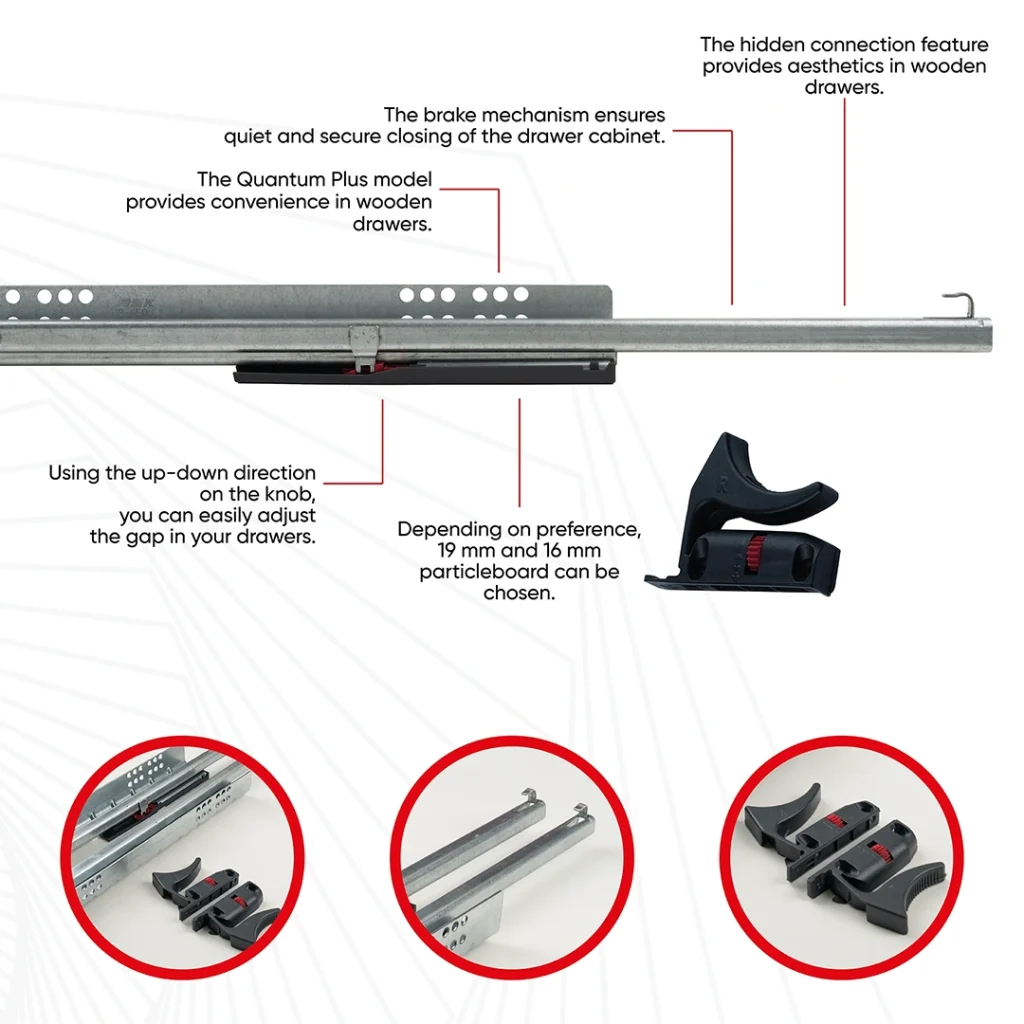

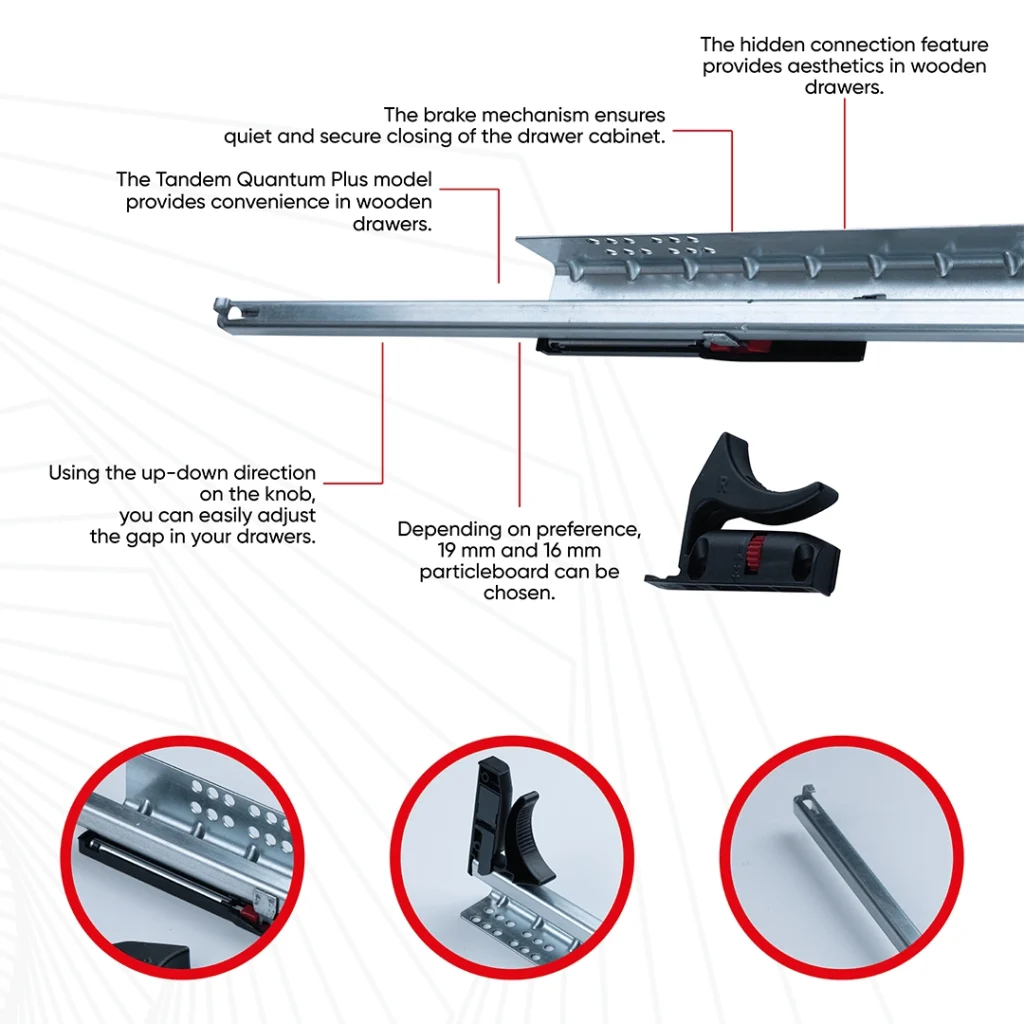

- The Tandem Quantum Plus model provides convenience in wooden drawers.
- The brake mechanism ensures quiet and secure closing of the drawer cabinet
- The hidden connection feature provides aesthetics in wooden drawers.
- Using the up-down direction on the knob, you can easily adjust the gap in your drawers.
- Depending on preference 19 mm and 16 mm particleboard can be chosen.
- Product Specifications
- Profile
- Fasteners

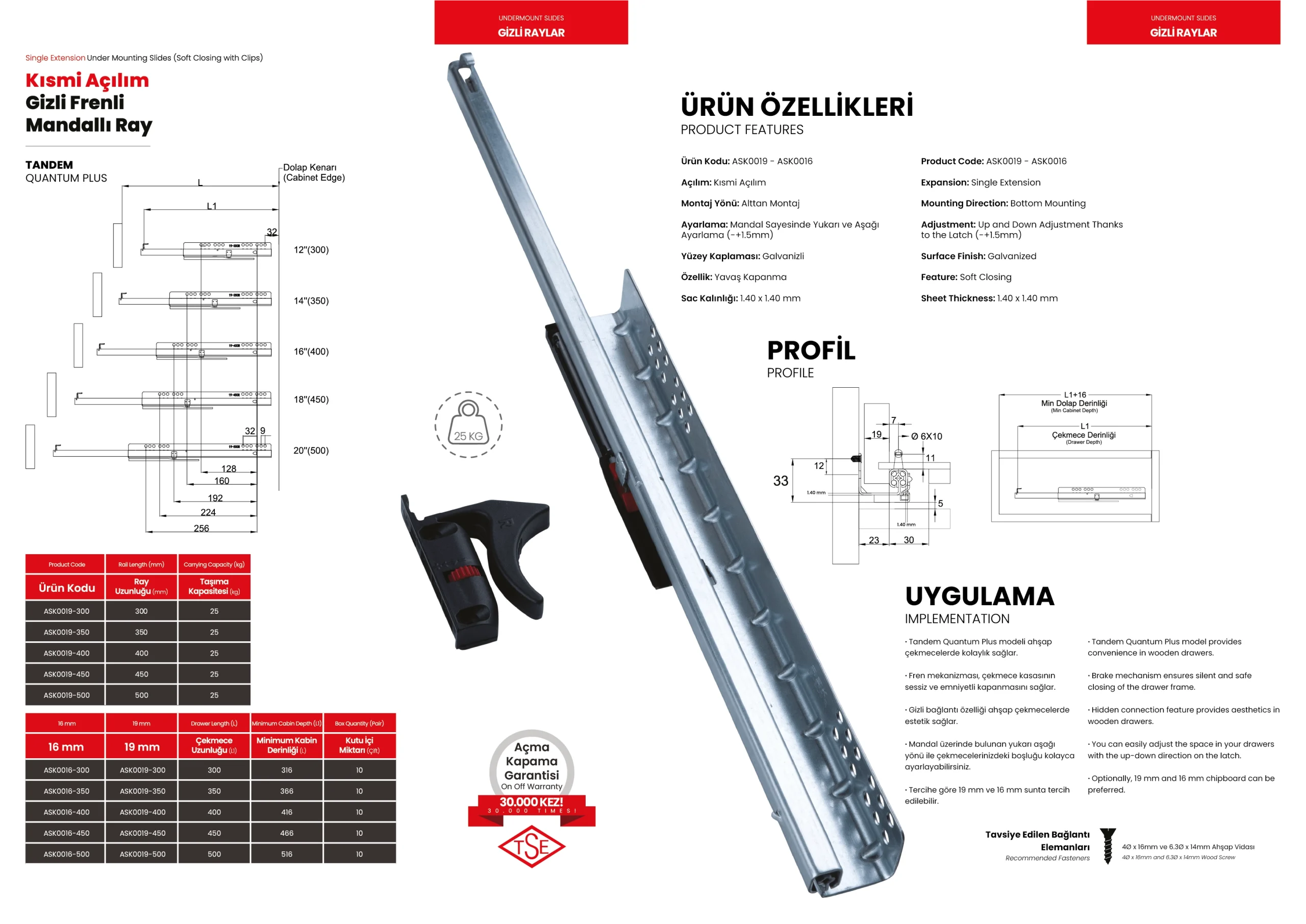

Product Specifications
Product Code ASK0019 - ASK0016
Expansion: Single Extension
Mounting Direction: Bottom Mounting
Adjustment: Up and Down Adjustment Thanks to the Latch (-+1.5 mm)
Suface Finish: Galvanized
Features Soft Closing
Sheet Thickness: 1.40 x 1.40 mm
Recommended Fasteners
4 Ø X 16 mm ve 6,3 Ø X 14 mm Wood Screw
| 16 mm | 19 mm |
Drawer Length L1 |
Carrying Capacity kg |
Minimum Cabiin Depth L |
Box Aquantity Pair |
|---|---|---|---|---|---|
| ASK0016-300 | ASK0019-300 | 300 | 25 | 316 | 10 |
| ASK0016-350 | ASK0019-350 | 350 | 25 | 366 | 10 |
| ASK0016-400 | ASK0019-400 | 400 | 25 | 416 | 10 |
| ASK0016-450 | ASK0019-450 | 450 | 25 | 466 | 10 |
| ASK0016-500 | ASK0019-500 | 500 | 25 | 516 | 10 |
